Automotive Smart Display Controllers

For multi-display cockpit applications

Built on Socionext’s 2D SEERIS® Pixel Engine, these smart display controllers enable highly optimized and cost-effective solutions for complex multi-display cockpit applications. They reduce the overall BOM and ensure the realization of future proof architectures. All graphics processing is performed in a line-buffer based scheme, combined with a versatile and flexible sprite engine.

The fail-safe operation and error-free and high-class display of safety-critical content is ensured through a variety of special safety features like signature units, local dimming and warping, thus supporting functional safety with ISO 26262.

An optional APIX® video link is integrated with up to 12 Gbps link speed. Camera connectivity is enabled over Ethernet with touch controller support through back channel.

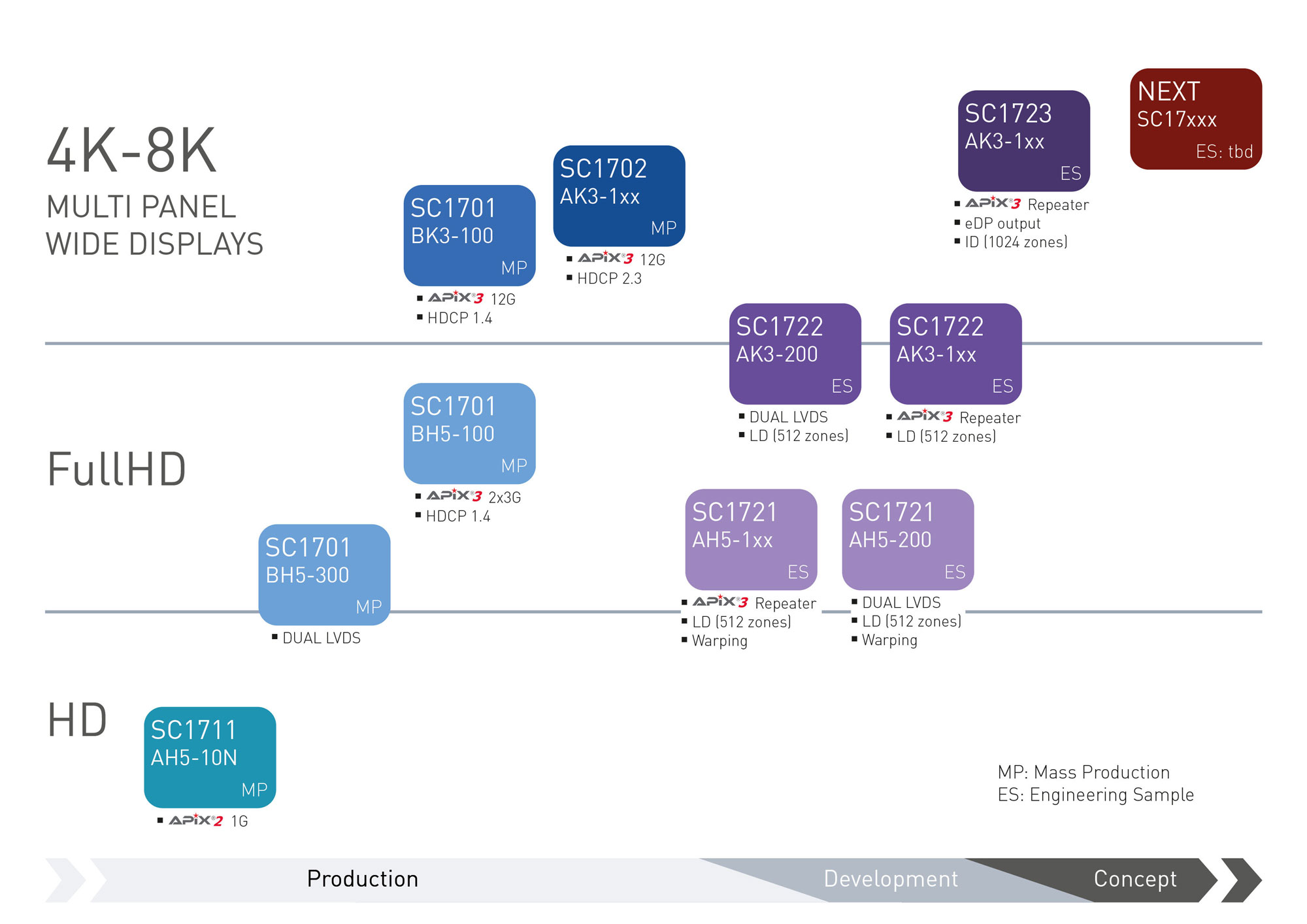

Display Controllers – Roadmap

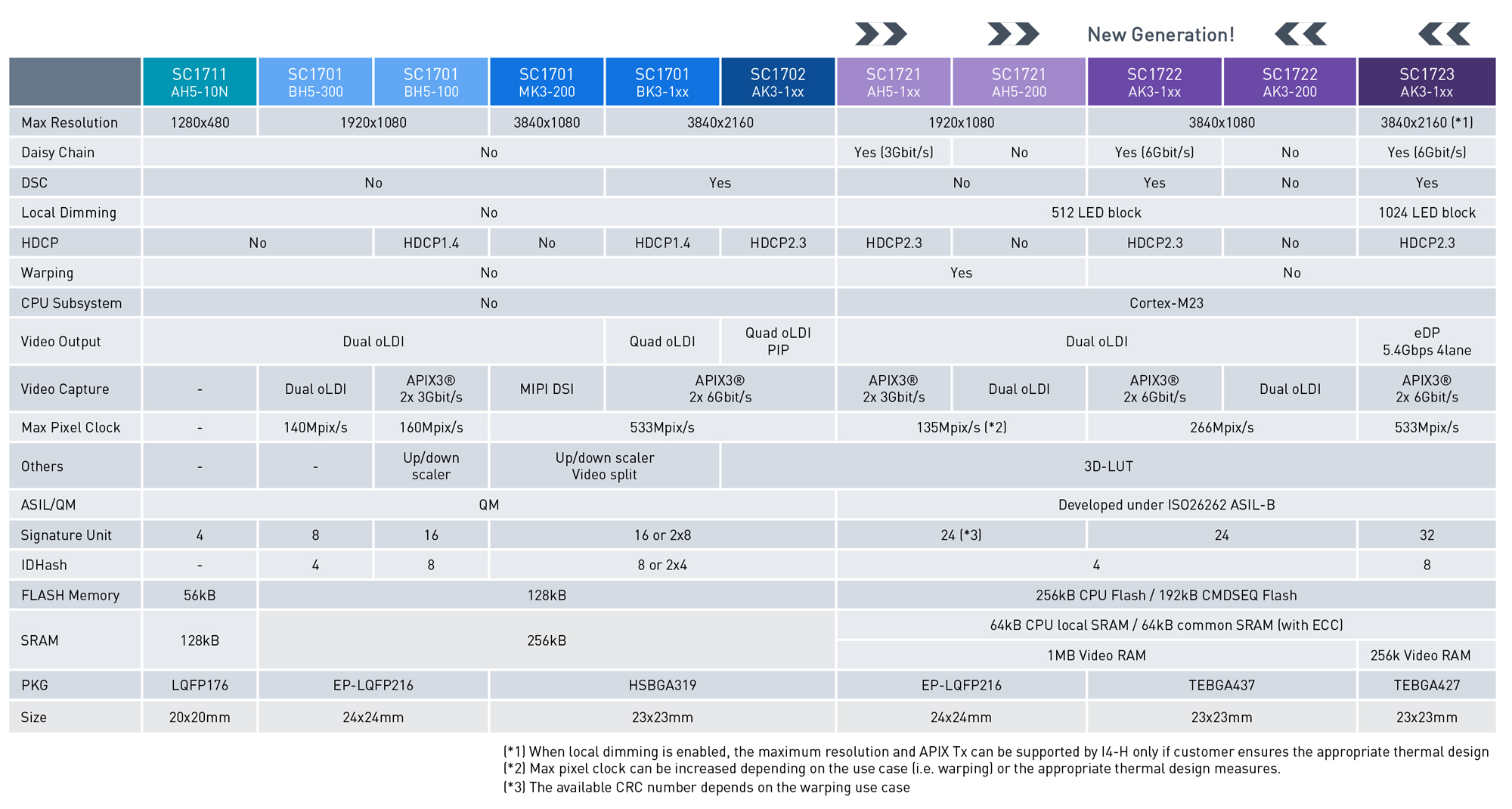

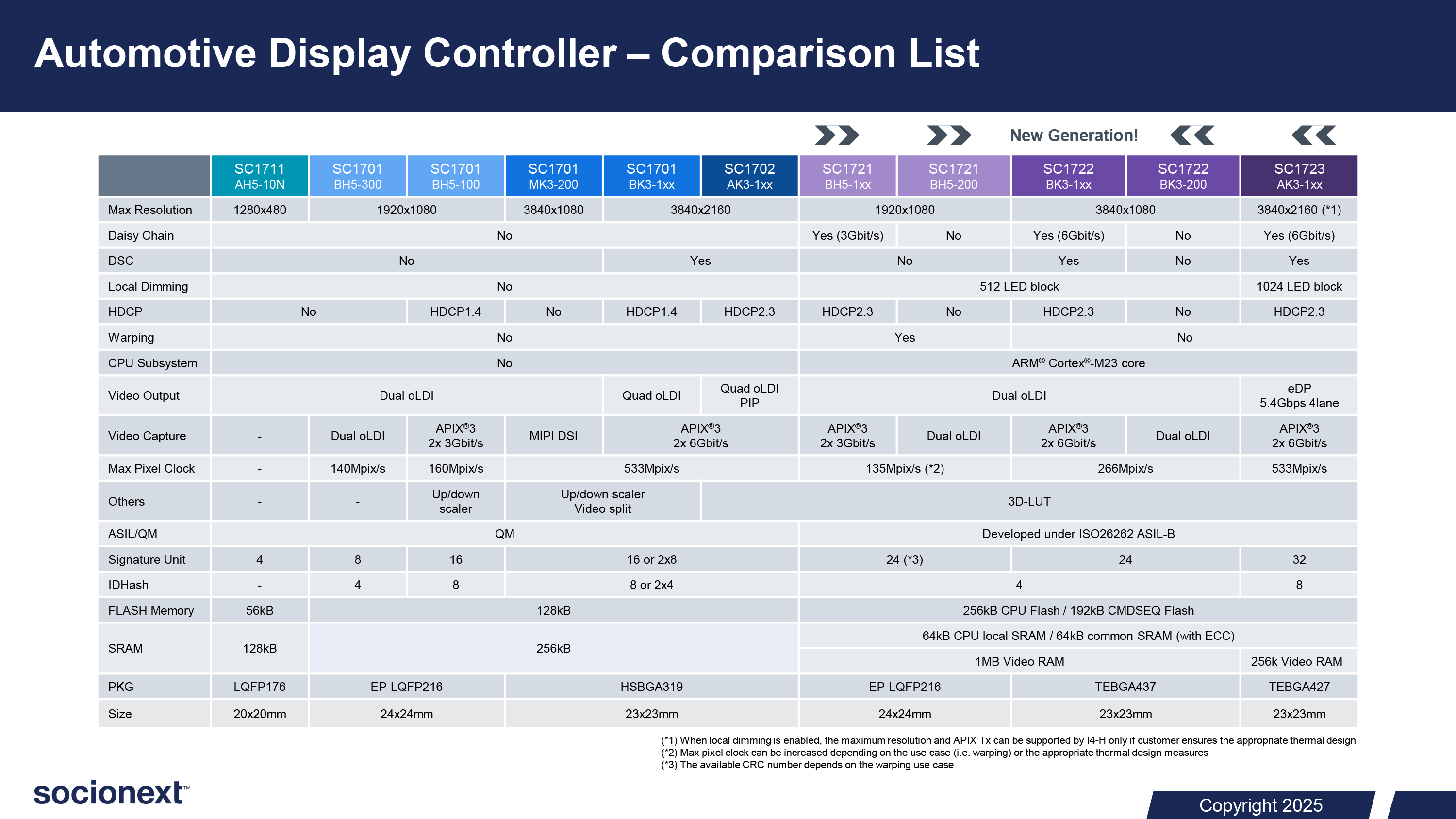

Display Controllers – Overview

Products Resolution Output Input / Video-Link Signature Units APIX Repeater Local Dimming Warping
SC1711AH5-10N
1280x480 TCON, OpenLDI 1 Gbps APIX®2 4 No - -
SC1701BH5-300
1920x1080 TCON, OpenLDI LVDS, oLDI 8 - - -
SC1701BH5-100
1920x1080 TCON, OpenLDI,
mini-LVDS
2x 3 Gb/s APIX®3
with HDCP
16 No - -
SC1701MK3-200
3840x1080 TCON, OpenLDI,
mini-LVDS
MIPI DSI 16 or 2x8 - - -
SC1701BK3-100
3840x2160 TCON, OpenLDI,
mini-LVDS
2x 6 Gb/s APIX®3
with HDCP
16 or 2x8 No - -
SC1702AK3-1xx
3840x2160 TCON, OpenLDI,
mini-LVDS, PIP
2x 6 Gb/s APIX®3
with HDCP
16 or 2x8 - - -
SC1721AH5-1xx
1920x1080 OpenLDI 2x 3 Gb/s APIX®3
with HDCP
24 Yes
(Tx 3Gbit/s)
512 LED
Blocks
Yes
SC1721AH5-200
1920x1080 OpenLDI LVDS, oLDI 24 - 512 LED
Blocks
Yes
SC1722AK3-1xx
3840x1080 OpenLDI 2x 6 Gb/s APIX®3
with HDCP
24 Yes
(Tx 6Gbit/s)
512 LED
Blocks
-
SC1722AK3-200
3840x1080 OpenLDI LVDS, oLDI 24 - 512 LED
Blocks
-
SC1723AK3-1xx
3840x2160 eDP
(5.4Gbps 4lane)
2x 6 Gb/s APIX®3
with HDCP
32 Yes
(Tx 6Gbit/s)
1024 LED
Blocks
-
